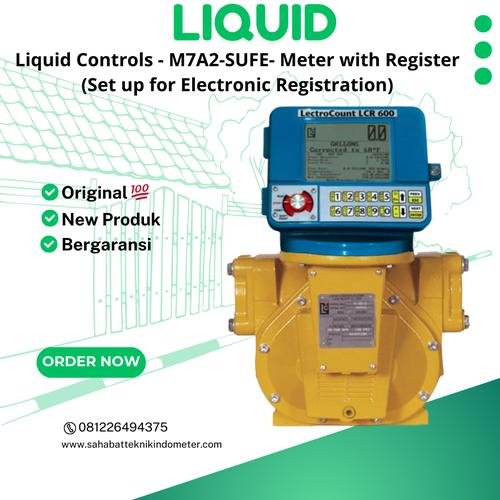

Liquid Controls – M7A2-SUFE- Meter with Register (Set up for Electronic Registration)

Liquid Controls Flow Meter, LC, Spesifikasi
REPEATABLILITY: Capable of .03% of reading over entire range.

LINEARITY: Capable of ±0.10% or better over a 5:1 range from maximum nominal meter capacity.

LINEARITY: Capable of ±0.10% or better over a 10:1 range from maximum nominal meter capacity.

LINEARITY: Capable of ±0.15% or better over a 40:1 range from maximum nominal meter capacity.

Multi-point calibration for meters equipped with LectroCount Electronic Registration allows superior accuracy (linearity) as indicated above.

Power Requirements:
LectroCount LCR-II: +9 – 28 VDC

Environmental:
Enclosure: Class 1, Division 2, Group C&D design, NEMA 4X

Operating Temp Range: -40° to 158°F (-40° to 70°C)

Approvals:
US Weights & Measures: LCR-II

Measurement Canada: LCR-II

Output:
RS232/485

Printer:
Epson, Okidata and Blaster Models

Electrical:
Power: +9 to 28VDC, 3A maximum (including solenoid valves)

Inputs:
Temperature input: 4-Wire Platinum RTD

Pulse Inputs: +5 to 28 volt peak to peak, open collector, single channel or quadrature
