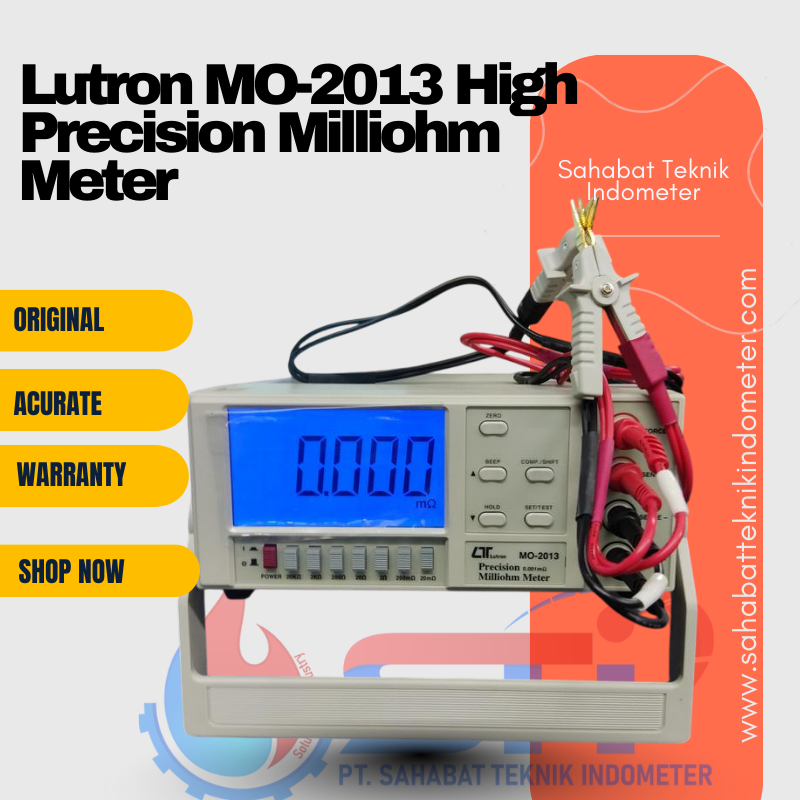

LUTRON MO-2013 Milliohm Meter
Made in Taiwan

● 4 terminal devices for accurate measurement of very low resistance.
● Ideal for measuring the resistance of components precisely.
● Wide measuring range, 0.01 m ohm 20K ohm, 7ranges.
● 20 mm, large size LED display.
● Built-in over input protection.
● Durable bench type housing case.
● Built-in over input protection.
● 4 terminal devices for accurate measurement of very low resistance.
● Ideal for measuring the resistance of components precisely.
● Ideal for testing protective conductors, lightning conductors and welded points.
● Wide measuring range, 0.01 m ohm – 20K ohm,7 ranges.
● 20 mm, large size LED display
● LSI circuit provides high accuracy, reliability and durability.
● Built-in over input protection.
● Durable bench type housing plastic case stand.
● Built-in over input protection

GENERAL SPECIFICATIONS
● Test Range (Test Current)
20 m ohm (1 A DC)
200 m ohm (1A DC)
2 ohm (100 mA DC)
20 ohm (10 mA DC)
200 ohm (1 mA DC)
2 K ohm (100 uA DC)
20 K ohm (10 uA DC)
● Warning Setup: Warning LED Indicator, Buzzer
● Operating Temp: 0 to 50℃
● Operating Humidity Less than 80 %
● Power Supply: AC 110V or AC 220V, 50/60 Hz.
● Fuse for Power supply: 200 mA/250V
● Dimension: 280 x 210 x 90 mm
